Digital Product Passport
Product Information

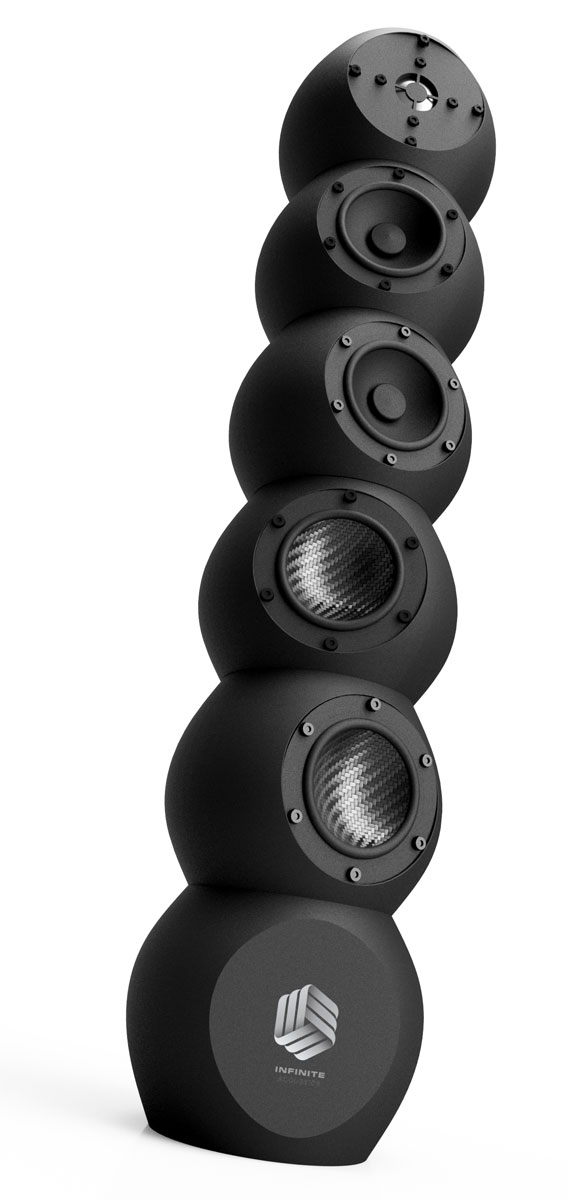

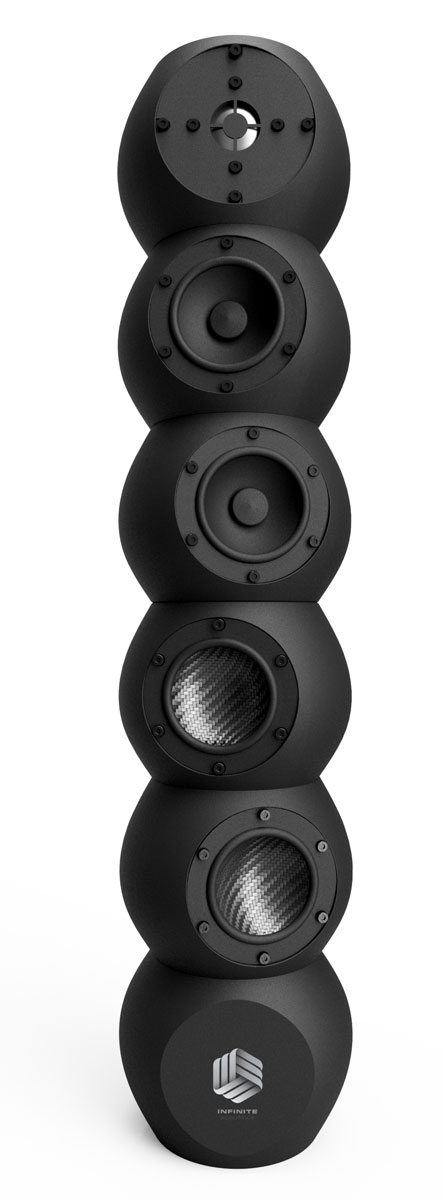

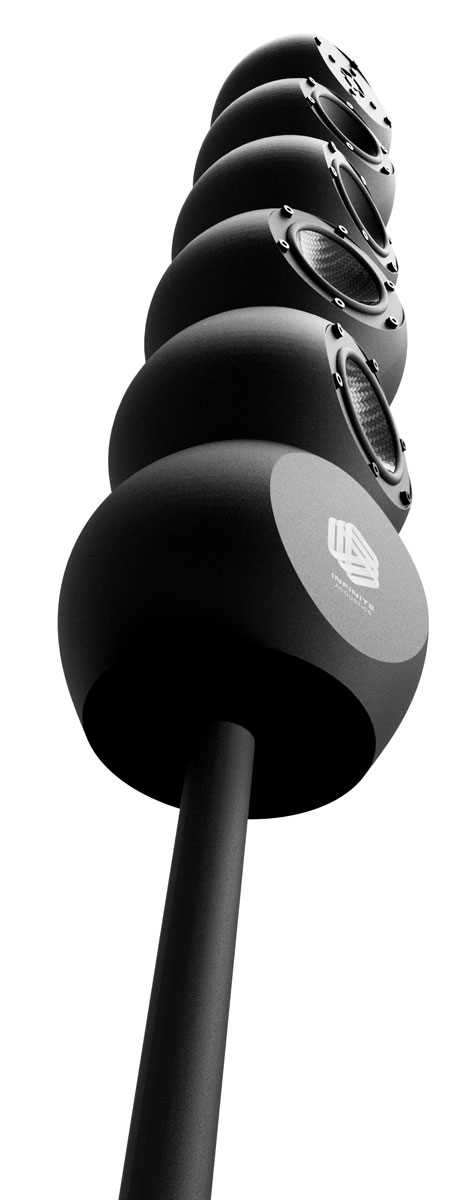

ZIRCONIUM HiFi speaker Black Velvet Highway
The ZIRCONIUM is a full range line array tower with 5 drivers consisting of two aluminium midrange woofers, two Carbon fiber woofers and one silk dome tweeter. The Speaker is an artisan passive HiFi speaker with analogue passive crossovers built by hand with high quality components for the ultimate sound experience. The Cabinet is 3D printed locally with 100% recycled materials ina. patent pending material Addnite Black velvet edition.
Product Data
Product code
PROD0291
Place of manufacturing
Los Angeles
Country of manufacturing
United States
View more
Click here to know moreSpare Parts
Spare Part Information
All parts can be purchased individually to enable repair and rebuilding. Some of the parts can also be self-printed on 3D printers, but please use Addnite material to keep consistency and use recycled materials.
Infinite Acoustics Alu Driver 3.5" LW098AR-8
HiFi Aluminum driver 3.5" Cast Aluminum frame, alu cone, High rebound property of rubber sound. Copper ring for lower distortion 8 Ohms, magnet diameter 70 mm, and 98mm outer ring diameter. Includes 6 pcs of M3x10 black Allen screws that fits the 3D printed cabinet

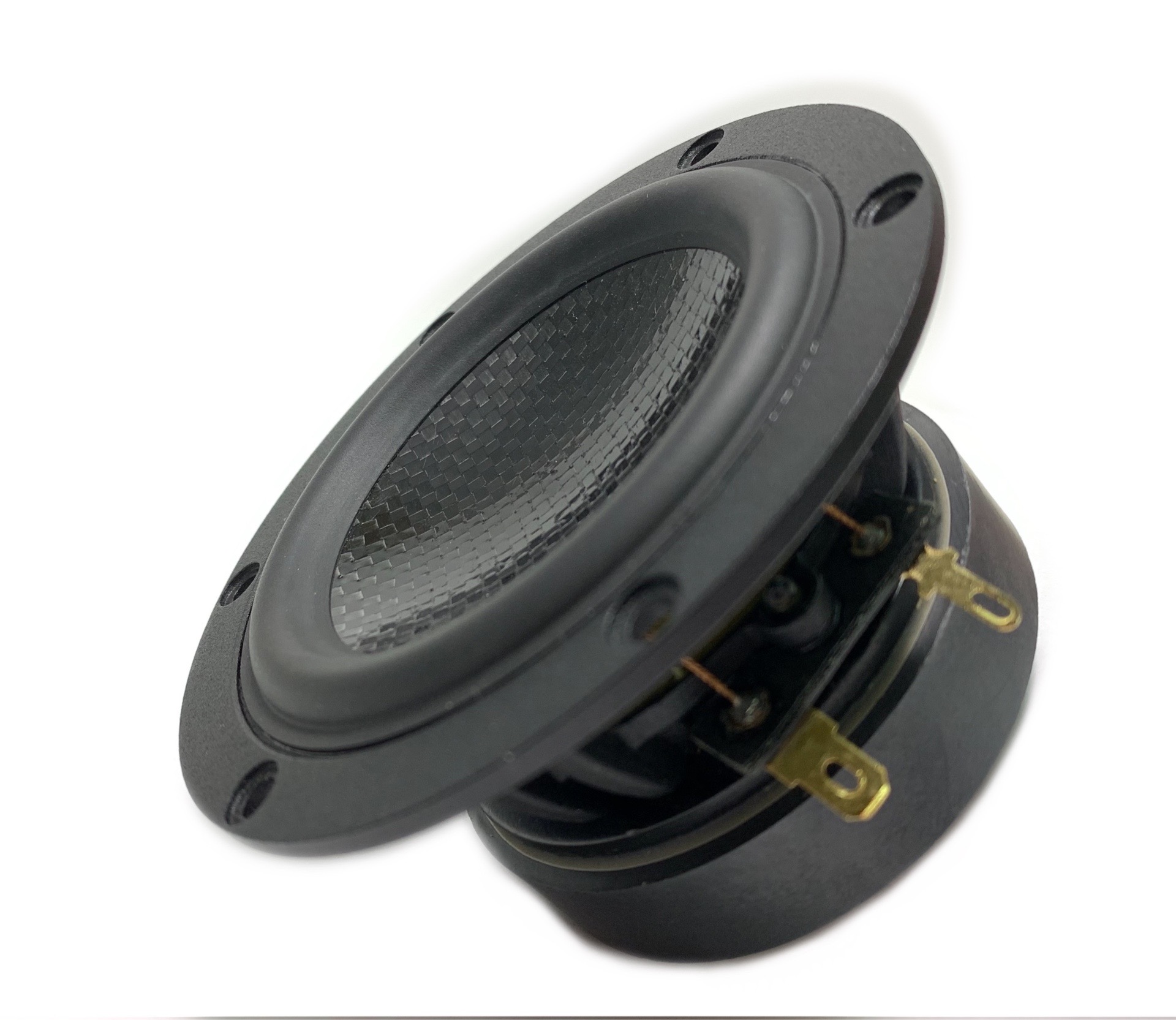

Infinite Acoustics Carbon Driver 3.5" LW098CR-8
Infinite Acoustics Carbon fiber Driver 3.5" LW098CR-8 for HiFi applications. Impedance 8 Ohms, sensitivity 84 dB.

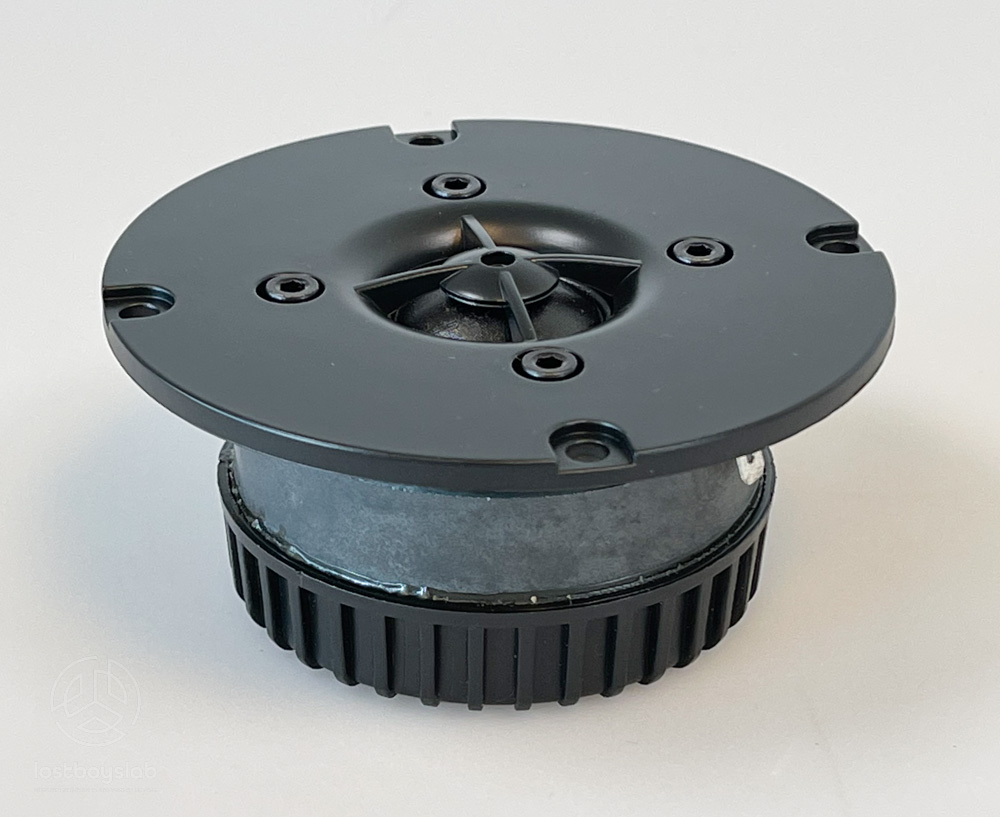

Tweeter 1" driver D25 Infinite Acoustics
Standard 1" tweeter from Infinite Acoustics, Silk membrane and aluminum frame Includes 4 pcs of M3x10 black Allen screws that fits the 3D printed cabinet 100mm (25 Dome tweeter ) Impedance 6 ohms

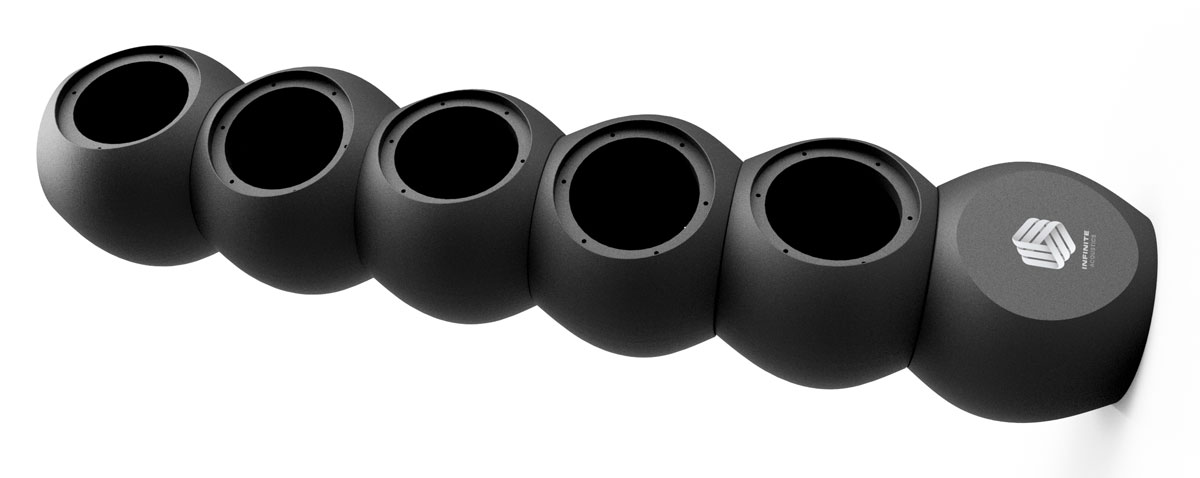

Zirconium speaker cabinet
Complete cabinet 3D printed in 100% recycled material.
Sub-products

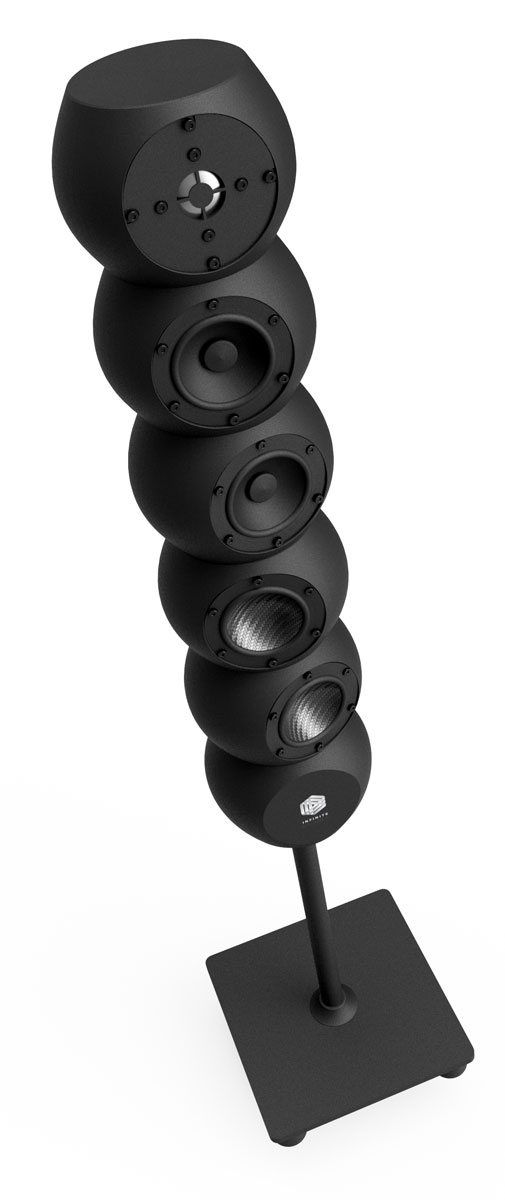

The slick LOW metal stand is available in white or black powder coat. Made to hide cables from Speaker solution attached on top. Can be built with one channel binding posts or two if Atmos up system is added.

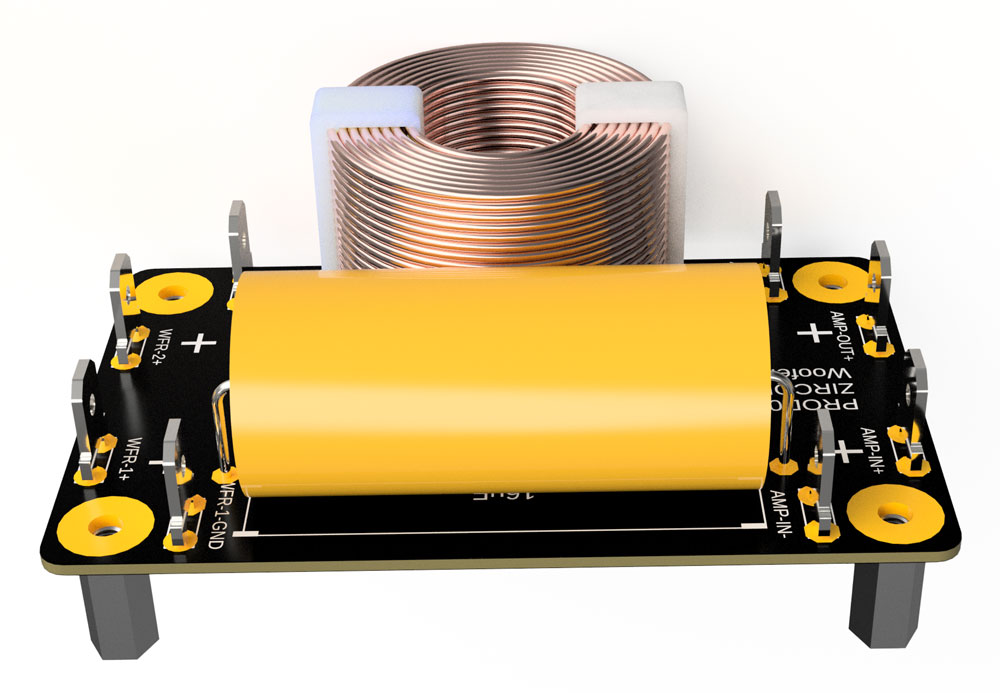

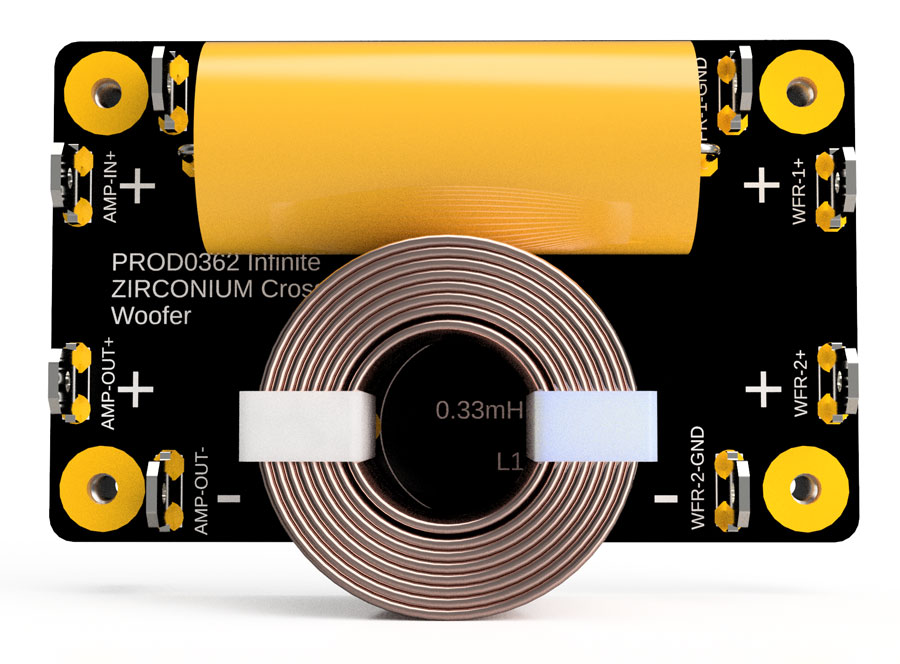

50x80 PCB Crossover low bass for Zirconium and other ATOm based Medium, this product is for lower region with double Carbon 3.5 " woofers
50x80 PCB Crossover low-mid bass for Zirconium and other ATOM based Medium, this product is for mid-lower region with double Alu 3.5 " woofers
50x80 PCB Crossover high range for Zirconium and other ATOM based Medium, this product is for higher region with a tweeter
Material
Material Information
Special version of Addnite 100% recycled from Polymer, EPDM and used post consumer Tyre rubber
Main Material
Material name
Addnite P10R5T
Material brand
Lostboyslab - Addnite
Material code
MATL0244-2300
Color code
NCS9000
Country of origin
Sweden
Material data sheet
Material safety sheet
Secondary Material
Material name
16-6 Stainless Steel
Material brand
Generic
Country of origin
China
Recycling
Recycling Information
We offer full retake on this product in partnership with Lostboyslab 100% circular 3D print farm. The full product can be sent back or as separate parts. Lostboyslab, Hästskogatan 2 Malmö.
Bioderived
No
Biodegradable
No
Recyclable
Yes
Recycled
Yes
Material origin type
Tyres
Material chemical name
Polyethylene Terephthalate , EPDM and Tyre rubber
Resin Code
Recycling Image
Manufacturing
Manufacturer Information
Home of the Goosebumps
Faithfully tracing the shoreline, this iconic stretch of the Pacific Coast Hwy links the infinite ocean to an endless matrix of busy highways. This location allows us to feed our additive manufacturing pipeline with ocean plastic from the Pacific waste patch and tire rubber from the freeways to the East. The PCH, as a result of this, becomes our natural fulcrum.
Name
Infinite Acoustics
Country
United States
City
Los Angeles
[email protected]
Website
https://www.infinite-acoustics.com/
