Cabinet 3D printed Lithium w binding posts free standing

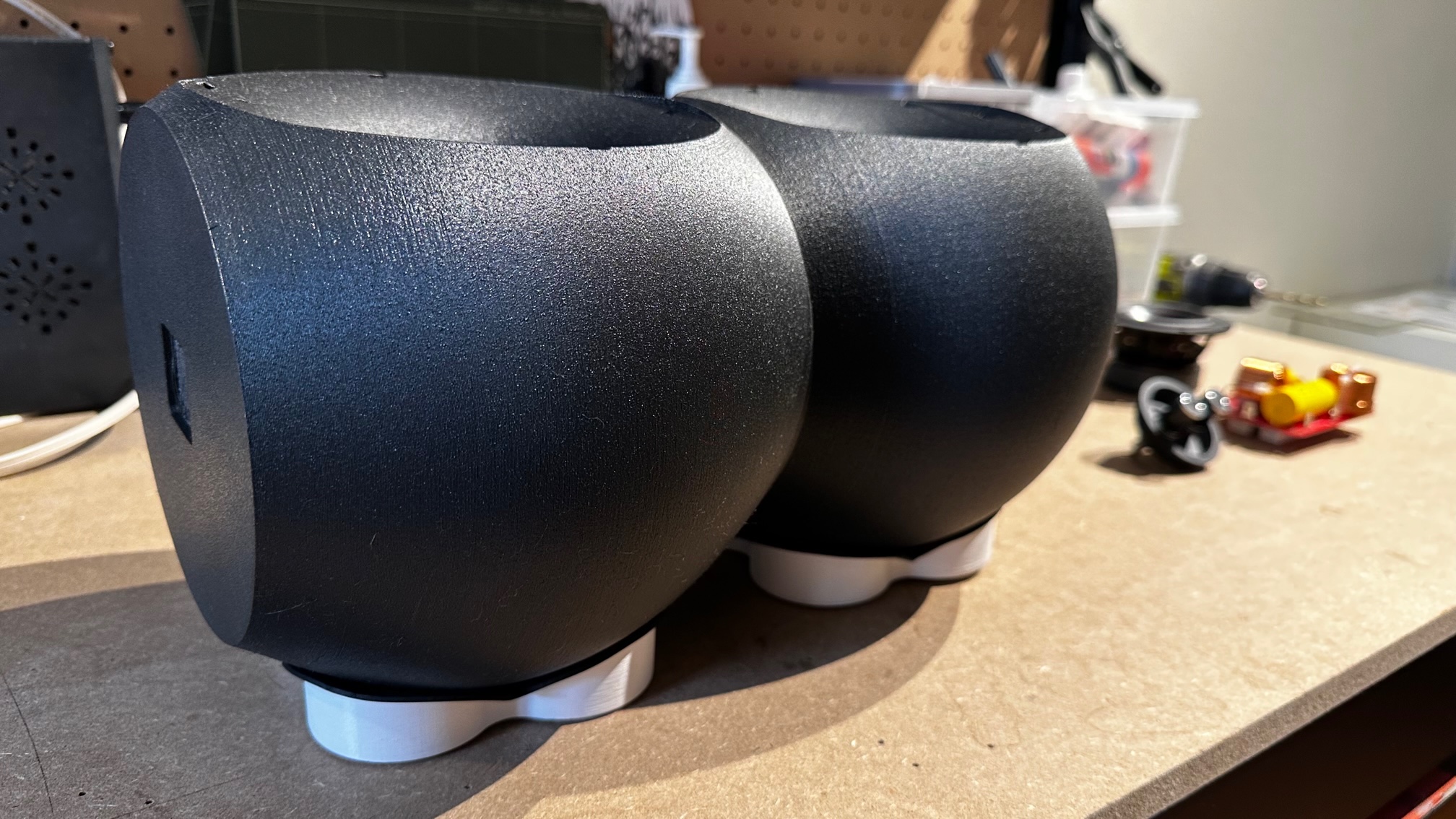

Fully assembled speaker cabinet for Lithium ONE and TWO with binding posts. The cabinet has NFC tag, top logo badge and bootom laser engraved foam. The two IA Atoms are press glued together and guided by 3 dowl pins. No drivers, Crossovers etc is inluded, only the 3D printed and laser engraved parts for LITHIUM
Product Code
PROD0768
Method of manufacturing
SEMI-DP
Place of manufacturing
Los Angeles
Country of manufacturing
United States
Manufacturing info URL
https://infinite-acoustics.shop/products/complete-speaker-cabinet-lithium-one-and-two-with-free-standing
Spare Parts
Spare Part Information
All the parts listed can be 3D printed separately, but this Product is a fully assembled and press glued item, ready to be added drivers, Crossovers, damping wool and backside Binding posts. Get this if you want to build and assemble but have no option to 3D print.
NFC tag whatt.io for filament spools
Larger NFC tag used on Filament spools or other applications that needs a larger antenna size than standard NFC
3D Filament ADDNITE P15R 1.75mm 750g
ADDNITE P15R is the first 3D filament in the ADDNITE series of 3D material. Developed and manufactured in Sweden by 3D printing and material experts it is made for end-user parts with its matte and dark finish supporting 1.75 mm diameter. The rPETg is sourced in Europe and comes from Zeewolde (Netherlands) originating from traceable industrial waste and distribution waste of trays which are used for sterilization of medical instruments-
Dowl pins in Steel 3 mm
Dowl pins in steel, 3 mm in diameter DIN 7A1 M6 3x20 mm
Outer ring structure for ATOM XL 1286 Top part of Lithium
The outer ring is printed separately to get the best finish and have to be glued with any super glue to the PART1732. For visual only. Print with same material main body, use 0.6 mm Nozzle, 0.2 mm Layer height and 40% infill.
Outer ring structure for ATOM XL 1732 bottom part of Lithium
The outer ring is printed separately to get the best finish and have to be glued with any super glue to the PART1732. For visual only. Print with same material main body, use 0.6 mm Nozzle, 0.2 mm Layer height and 40% infill.
ATOM XL case TOP part for Speaker Lithium
Used for Lithium Speakers and fits the 1" tweeter. Can be printed on Prusa MK3-4 with textured plate, 0.6 mm Nozzle, 0.3 mm layer height, Gyroid infill at 20% and min 3 walls. See more info in Product Manual.
ATOM XL case bottom part for speaker Lithium
Used for Lithium Speakers and fits the 3.5" woofers. Can be printed on Prusa MK3-4 with textured plate, 0.6 mm Nozzle, 0.3 mm layer height, Gyroid infill at 20% and min 3 walls. See more info in Product Manual.
Lasercut and engraved Inifnite logo for bottom part of Lithium
Laser cut and engraved Foam bottom for the Lithium series of speaker. Only sued on the basic free standing model with binding posts.
Plastic Glue REPLAST WURTH 2K Universal 210 Sec
Two component glue for pressing and gluing two Infinite Acoustics atoms together.
Sub-products
Spare Part Name
- Amount required:
- Part SKU:
- Version:
- Manufacturing method:
Material
Main Material
Material name
Addnite P10R5T
Material brand
Lostboyslab - Addnite
Material code
MATL0244-2300
Color code
NCS9000
Country of origin
Sweden
Material data sheet
Material safety sheet
Secondary Material
Material name
Addnite P15R
Material brand
Lostboyslab
Material code
MATL0248-0750
Color code
NCS 9000
Country of origin
Netherlands and Sweden
Material data sheet
Material safety sheet
Support
Recycling
Bioderived
No
Biodegradable
No
Material origin type
Tyres
Material chemical name
Polyethylene Terephthalate , EPDM and Tyre rubber
Recyclable
Yes
Recycled
Yes
Resin Code
Recycling Image
Manufacturing
Infinite Acoustics
Faithfully tracing the shoreline, this iconic stretch of the Pacific Coast Hwy links the infinite ocean to an endless matrix of busy highways. This location allows us to feed our additive manufacturing pipeline with ocean plastic from the Pacific waste patch and tire rubber from the freeways to the East. The PCH, as a result of this, becomes our natural fulcrum.
Name
Infinite Acoustics
Country
United States
Country
United States
